Bosch Rexroth has expanded its VarioFlow conveyor system with the release of the new VarioFlow belt conveyor variant, which features a fine-meshed chain surface. The standalone VarioFlow belt conveyor variant ensures that packaged goods are transported gently and efficiently. It fits seamlessly into the VarioFlow system portfolio, thereby reducing engineering times and enabling a customized material flow.

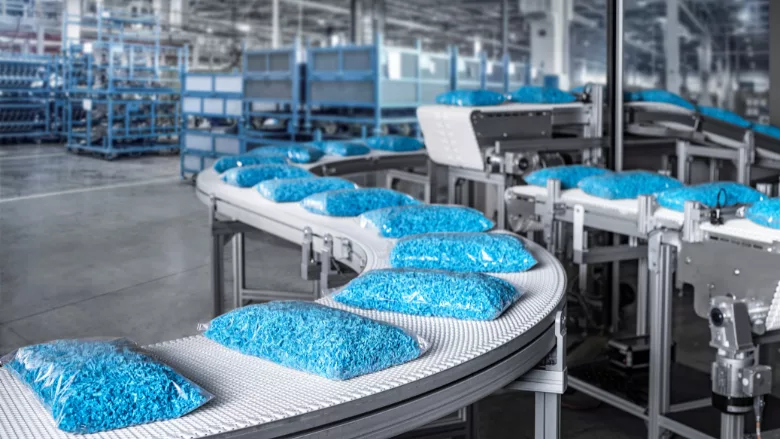

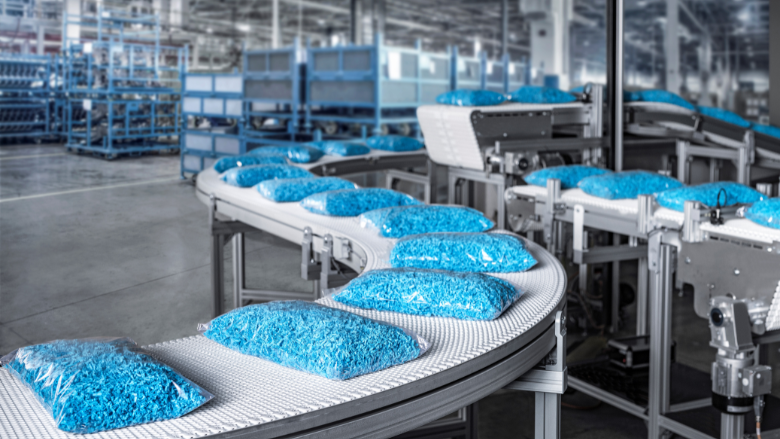

The VarioFlow belt conveyor has a very fine-meshed surface that is nearly closed and flat, making it suitable for the mass transport of unstable or bulk, film-packed products such as small, sealed-edge bags. At the same time, the VarioFlow belt conveyor can also be used to convey large or wide products, and products that are inherently stable can even protrude sideways in horizontal sections. Additionally, unlike conventional chain conveyor systems, VarioFlow modular belts are also suitable for the direct transport of deep-drawn plastic trays, which usually have a delicate contact surface.

VarioFlow includes modular belts in standard widths of 406 and 608 millimeters (mm). Scalable cross-connectors make it possible for integrators to also implement customized belt widths with identical system components. The basic components of the modular belt conveyor system comprise the base unit for the drive, the return unit, the section profile, and vertical and horizontal curves. These allow conveyor lengths of up to 30 meters (m), layouts with curves on both sides, and conveyor speeds of up to 40 m/minute to be realized with one drive. In terms of accessories, VarioFlow plus and VarioFlow belt use identical system components such as product guides, leg sets, and drive kits.

Moreover, MTpro, a free and intuitive software for planning assembly systems, supports users from selection and configuration through to ordering of Rexroth products. MTpro’s Layout Designer enables complex constructions and system layouts to be created in minimal time. An integrated evaluation function for the individual configuration eliminates the need for a third party to check the design and further reduces engineering times.

Specific features also reduce the time required to assemble the conveyor sections. For example, fewer sliding rails need to be installed compared to standard solutions on the market. The sliding rails are mounted from the side without the use of rivets, thereby eliminating the need to machine the running surface and ensuring the VarioFlow belt runs smoothly and with little wear.

Bosch Rexroth: www.bosch.com
